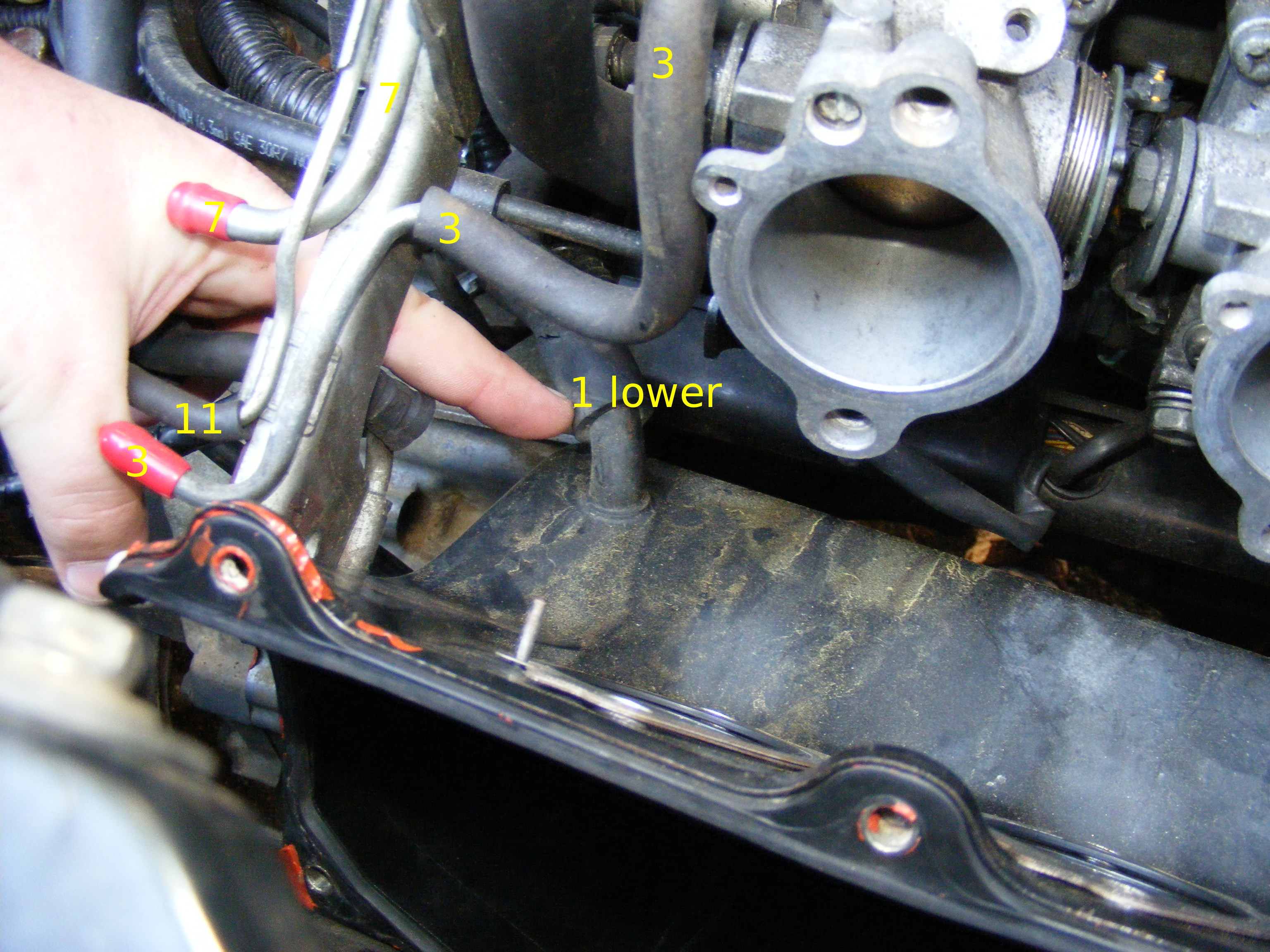

| 1 |
IAC |
| 2 |
Vac manifold to EVAP VSV #15 |
| 3 |
Vac manifold to #4 ITB engine hook hardline for A/C
idle up / power steering |
| 4 |
#4 ITB top to hardlines to throttle stop hardline, w/ T for MAP |
| 5 |
PCV |
| 6 |
#1 ITB top to FPR |
| 7 |
Vac manifold side outlet to engine hook hardline. Capped |
| 8 |
#4 ITB Brake booster line. Capped |
| 9 |
Brake booster line |
| 10 |

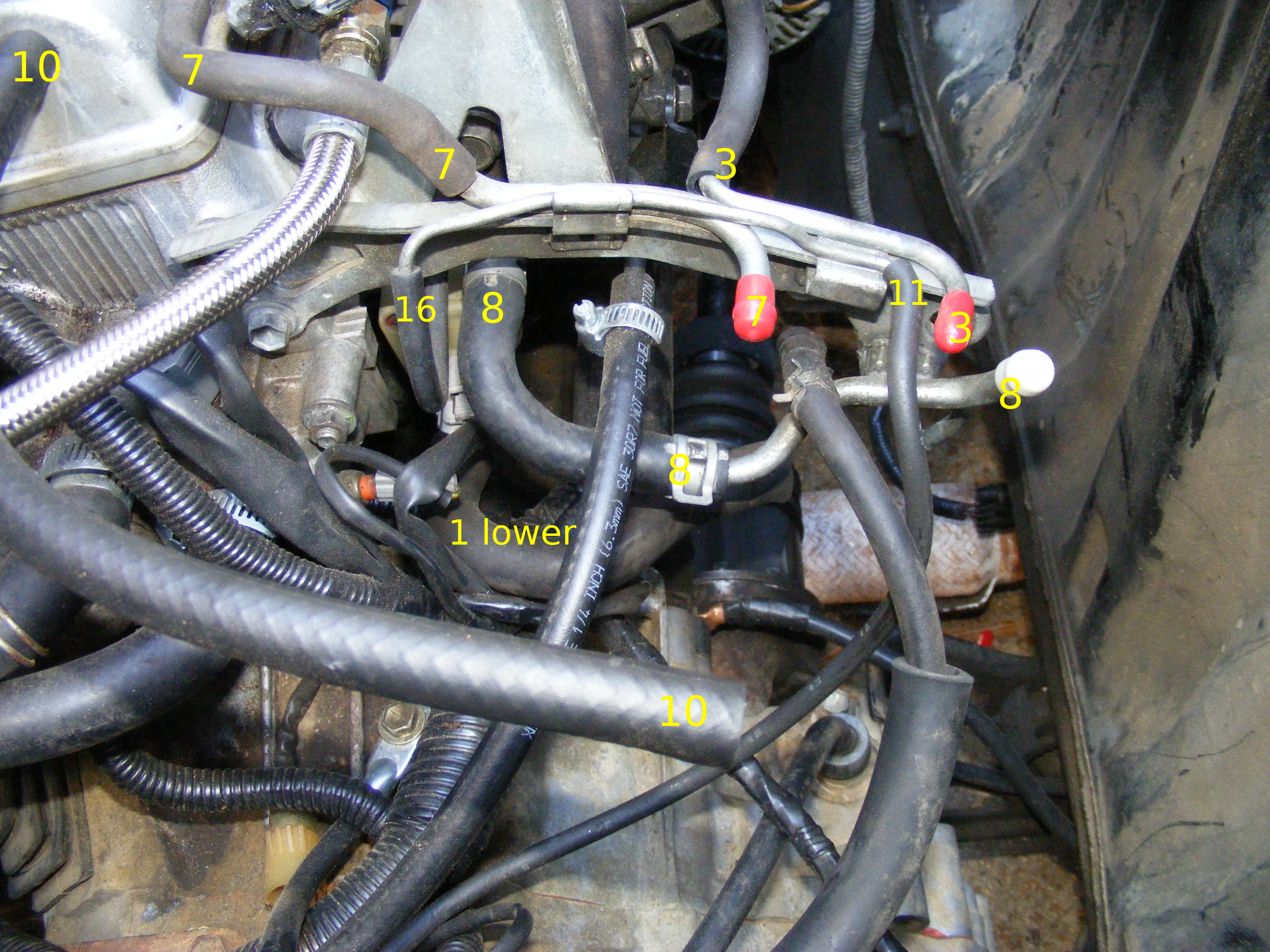

Valve cover ventilation to air box |
| 11 |
EVAP line from Engine hook hardline to EVAP can |
| 12 |

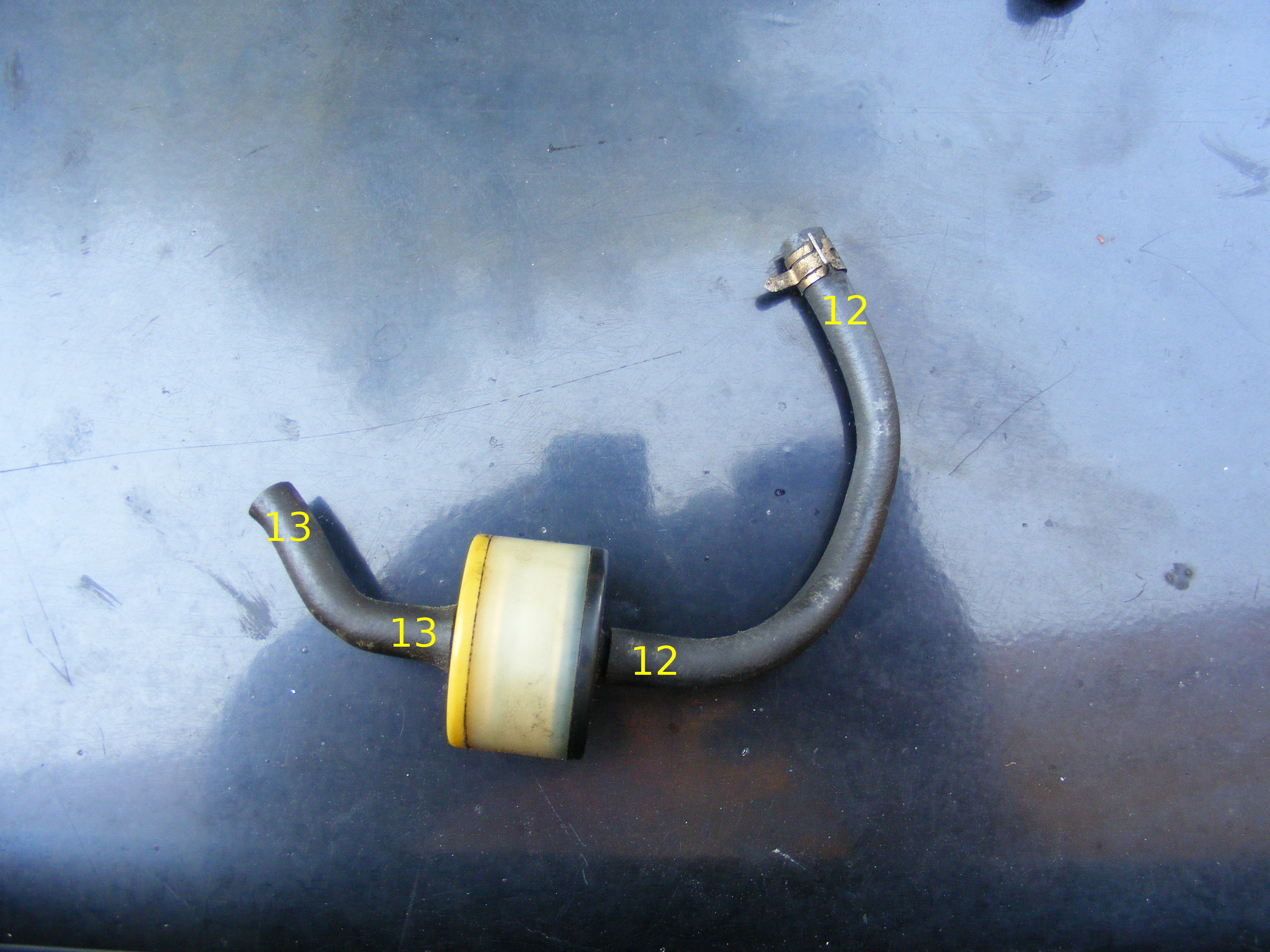

Throttle stop check valve (blue/black side) to throttle
stop |
| 13 |
Throttle stop check valve (yellow side) to hardline |
| 14 |
EVAP VSV to hardline (to #16 line to EVAP can) |
| 15 |
EVAP VSV to hardline (from #2 line from vac manifold) |
| 16 |

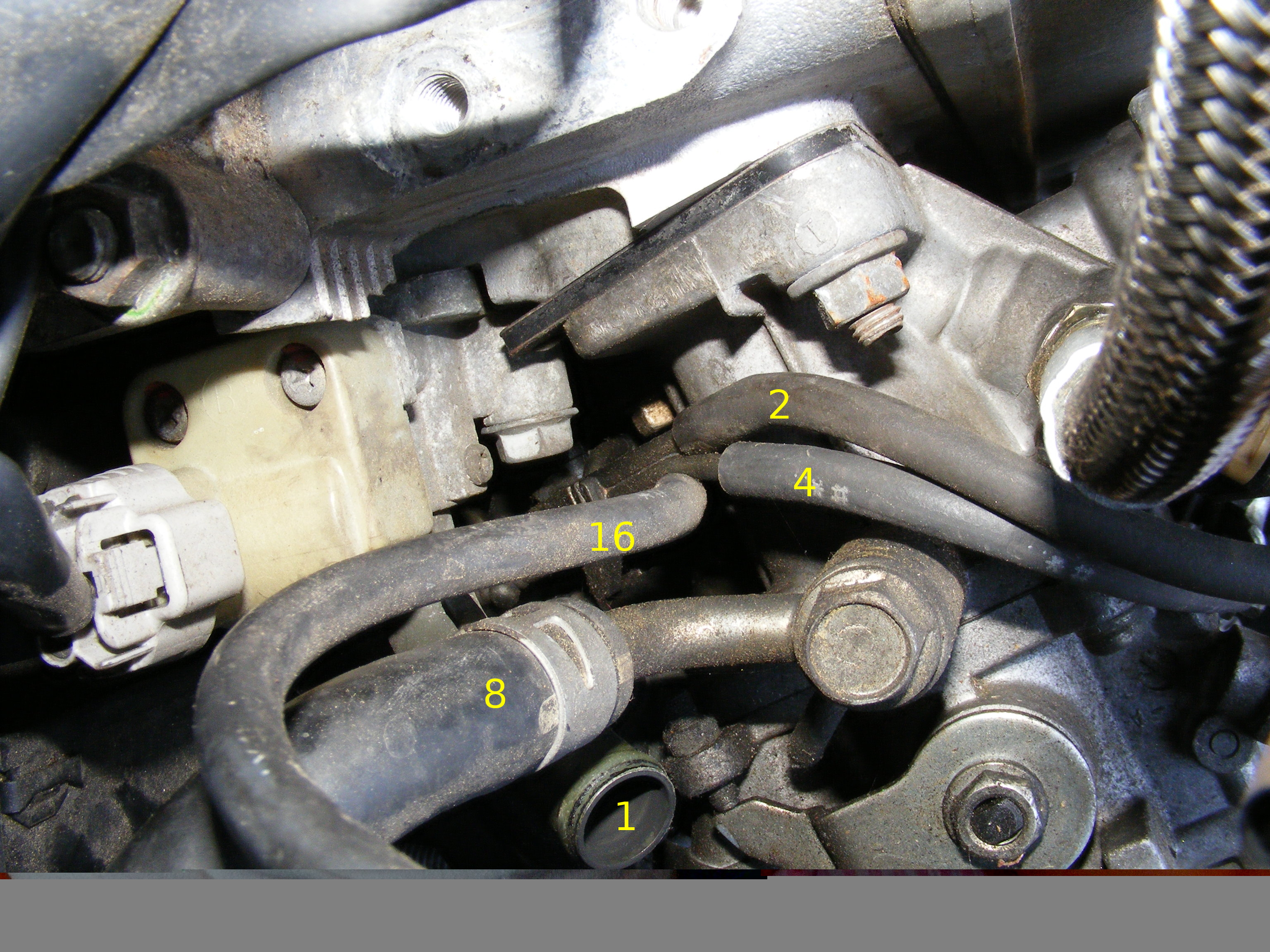

EVAP. From EVAP VSV hardline to engine hook hardline |
| 17 |
ITB #3 bottom to Hard line |
| 18 |

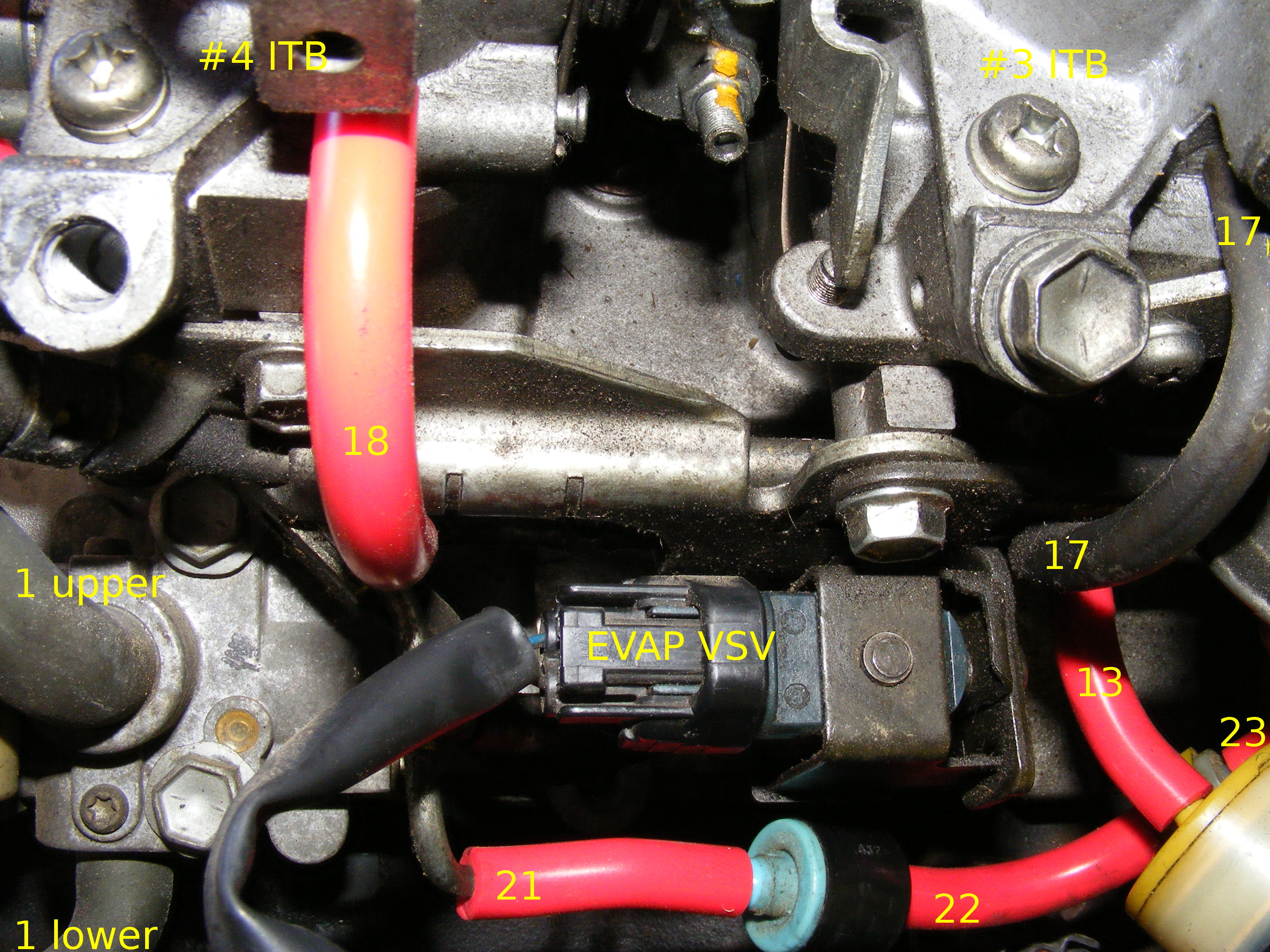

ITB #4 bottom to Hard line |
| 19 |

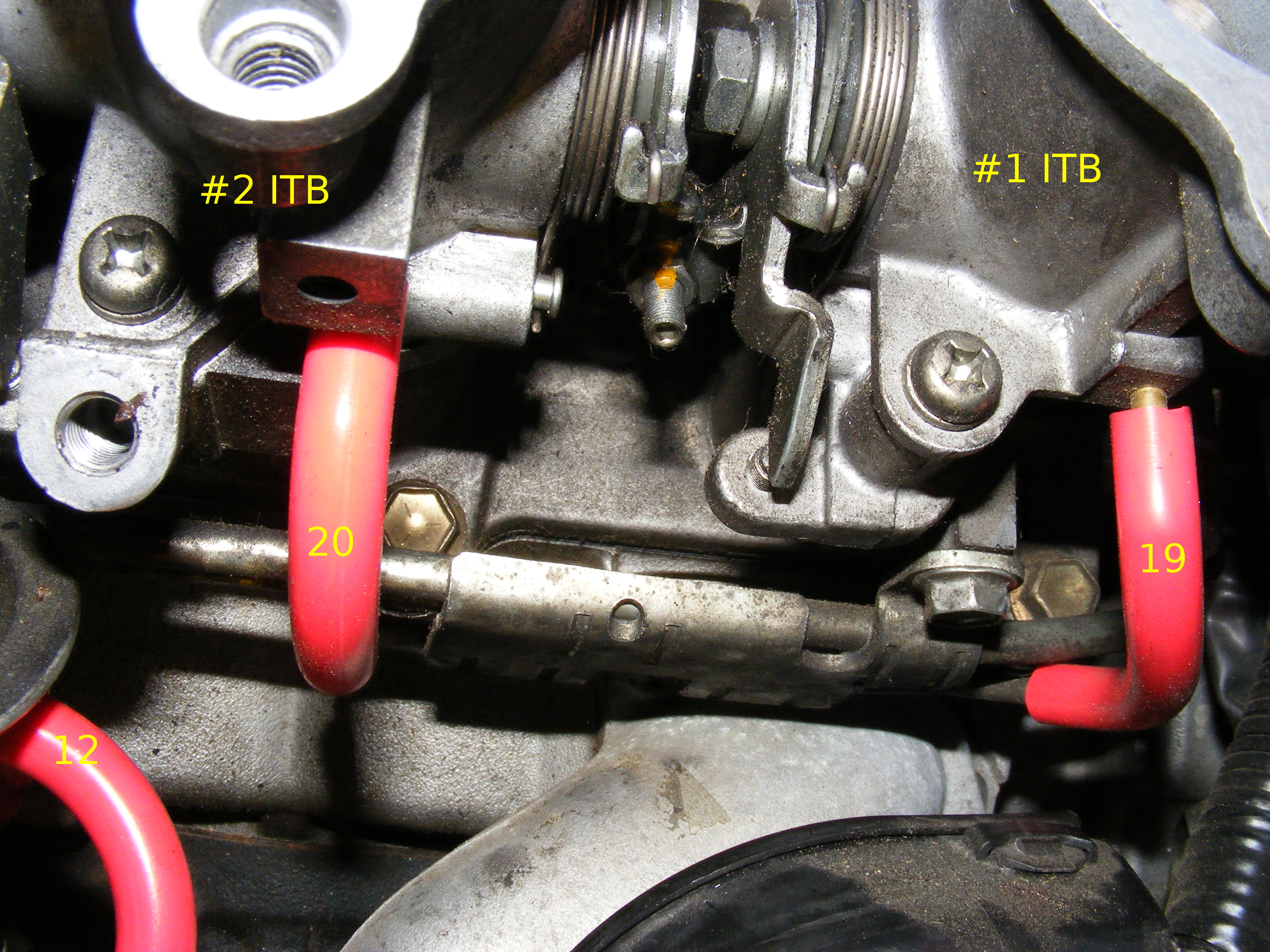

ITB #1 bottom to Hard line |
| 20 |

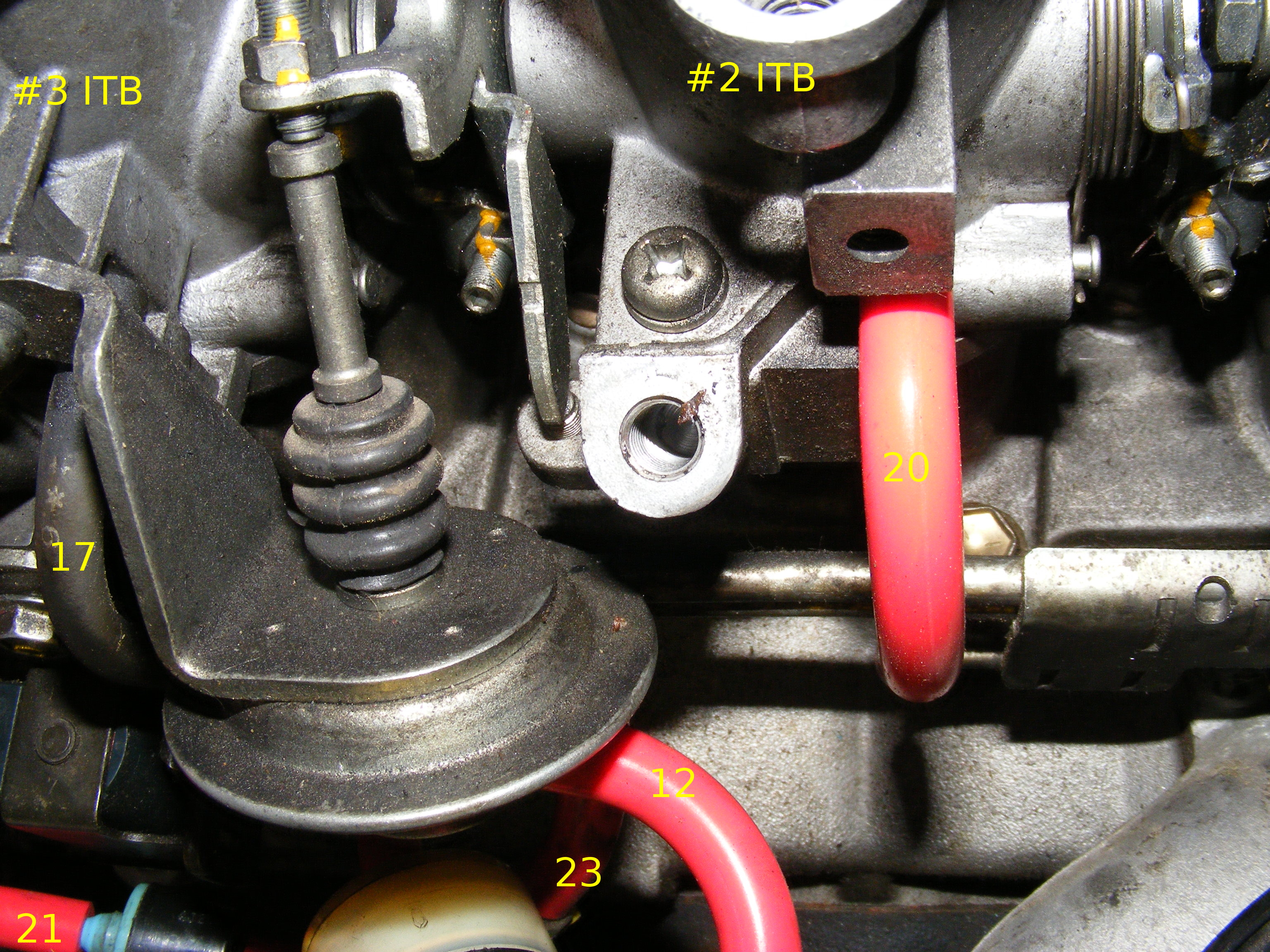

ITB #2 bottom to Hard line |
| 21 |
Vac hardline under #3 ITB to blue/black filter |
| 22 |
Blue/black filter (#21) to yellow/white filter |
| 23 |
Yellow/white filter (#22) to #2 ITB |
^M
| 24 | ^M
MAP sensor line. Connect to "T" in line #4 | ^M
